EPC-Tester

Hammer the Cost!
Save up to 70% on
4G
Validation cost
Features
EPC tester is a tool to test EPC (Evolved Packet Core)
EPC tester simulates UE + E-UTRAN environment
EPC tester is used to test effectively the EPC's User & Control planes
It is a software-centric solution designed to test in a multiuser, multi-eNB configurations
Enable to perform detailed traffic run analysis
Session-level analysis at LTE control plane; and throughput & QoS analysis at LTE user plane
LTE protocols: S1-AP/S1-C, S1-U, GTPU, SCTP, NAS based on 3GPP Rel 9 & 10 and simulated bearer applications
Enables easy addition of new FSMs and test suites
HARDWARE
Networking
IPv4
VPN (IPsec Tunnel mode)
VLAN
Interface
10 GB SFP+
Electrical
110 to 230v AC,
1 A
Mechanical
1U X86
EPC (SUT)

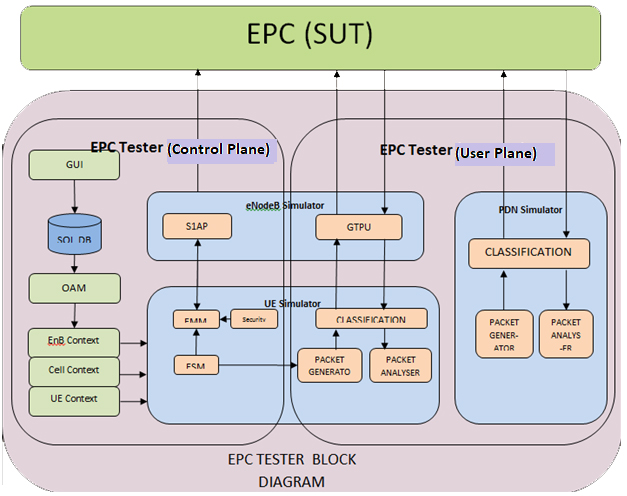

EPC Tester Consist of
UE , eNode-B & PDN Simulator
Works on Windows / Linux OS
Data base - SQL DB
EPC tester GUI with following configurable parameters : eNBs, Cells UEs (single user/Multi user)
EPC tester has Prepackaged Test Suite with
* Test procedures with MSC (Message sequence chart)
* Test script/Scheduler
* Enable Logs (S1AP, GTP-U & Wireshark)

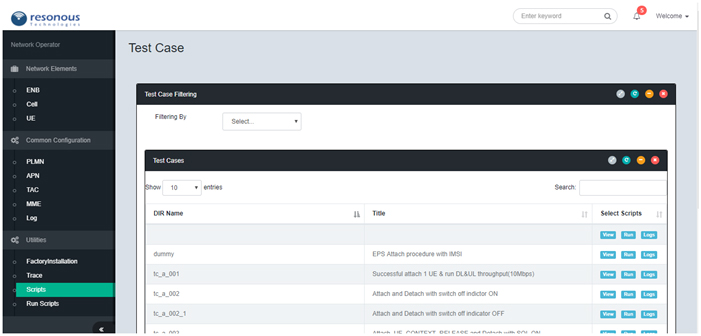

EPC tester GUI

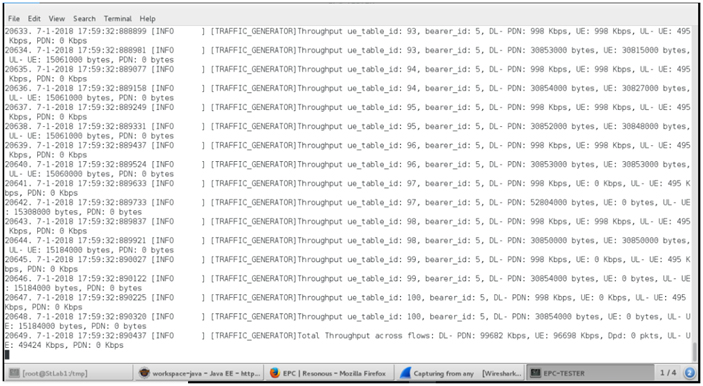

EPC Tester Terminal:

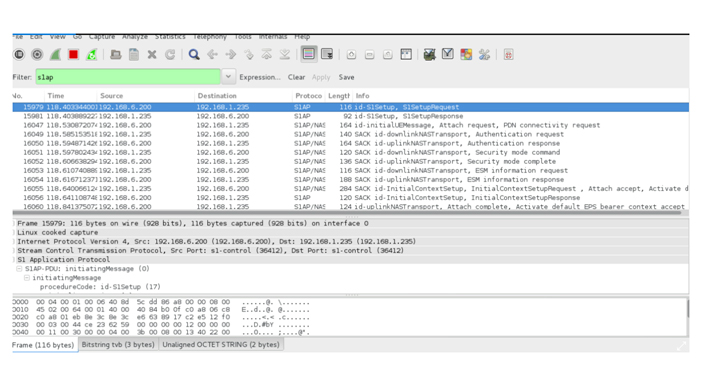

Wireshark Log:
EPC Performance can be monitored on NMS while testing EPC through EPC tester

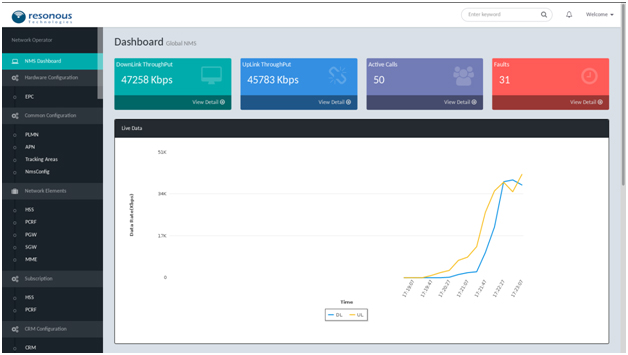

NMS Dashboard:

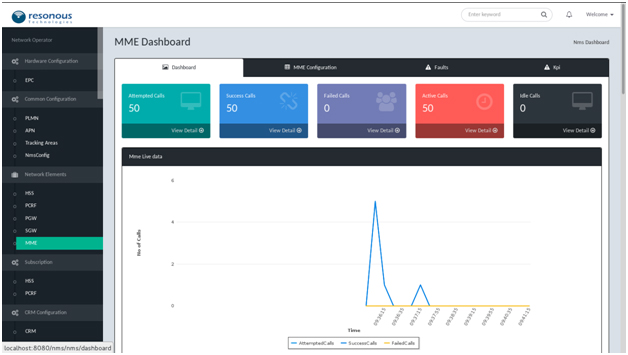

MME Dashboard :

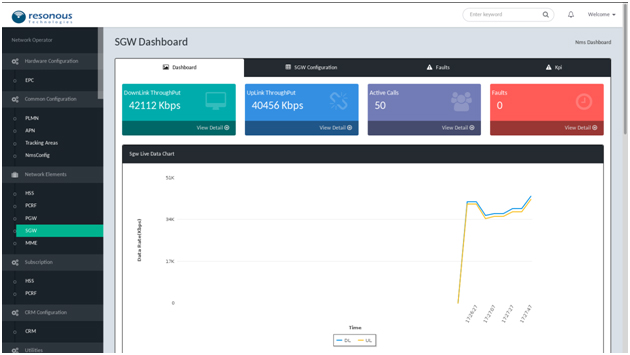

SGW Dashboard:

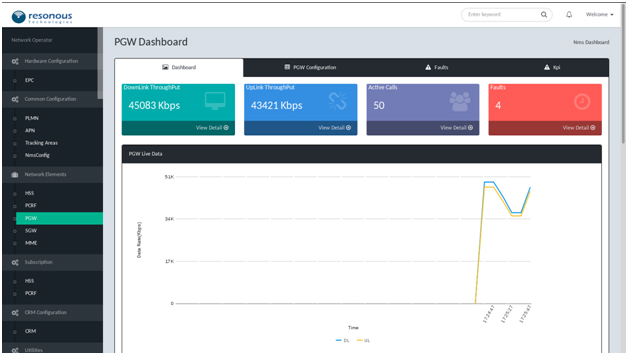

PGW Dashboard :
